Static-dissipative grade
ESD / Static Dissipative Foam
- Surface Resistivity
- 10⁶–10⁸ Ω/m²
- Application
- Electronic items packaging
- Colour
- Jet Black
- Density
- 85 ± 5 kg/m³
- Standard Finish Thickness
- 44 ± 2 mm
- Minimum Slice Thickness
- 2 mm
ESD Foam Sheet Manufacturer India
ESD & Conductive Foam Sheets for Electronics Packaging
Static-dissipative and conductive foam solutions for protecting PCBs, electronic components, sensors, connectors and precision equipment during handling, storage and transportation.
Send your drawing, component dimensions, sample or packaging requirement for a material and fitment recommendation.
ESD / Static Dissipative
10⁶–10⁸ Ω/m²
C-Conductive
10³–10⁵ Ω/m²
Product Overview
ESD & Conductive Foam for Electronic Component Protection
NestPack supplies ESD foam sheets and conductive foam sheet material for electronics packaging, then converts the selected grade into sheets, pads, trays, inserts and complete protective packs. Buyers can send a drawing, sample or component dimensions for an application review.
Our custom ESD foam fitments support PCB packaging, IC and semiconductor-related components, sensors, connectors, control modules, electronic assemblies, precision instruments and electronics transit packaging. Material selection should be validated for the ESD-sensitive component and complete packaging system.
Choose the Right ESD Foam Grade
Compare the supplied material grades, then ask NestPack to review the component and packaging configuration before production.
Conductive grade
C-Conductive Foam
- Surface Resistivity
- 10³–10⁵ Ω/m²
- Application
- Electronic items packaging
- Colour
- Jet Black
- Density
- 85 ± 5 kg/m³
- Standard Finish Thickness
- 44 ± 2 mm
- Minimum Slice Thickness
- 2 mm
Technical Specifications
Side-by-side data for ESD / static-dissipative and C-Conductive foam grades.
| Property | ESD / Static Dissipative | C-Conductive | Test method |
|---|---|---|---|
| Colour | Jet Black | Jet Black | — |
| Standard Length | 2250 mm (+50/-10) | 2200 mm (+50/-10) | — |
| Standard Width | 1150 mm (+30/-10) | 1100 mm (+30/-10) | — |
| Standard Finish Thickness | 44 mm (±2) | 44 mm (±2) | — |
| Density | 85 ± 5 kg/m³ | 85 ± 5 kg/m³ | ASTM D3575 |
| Hardness | 25 ± 3 Shore A | 25 ± 3 Shore A | ASTM D2240 |
| Tensile Strength @ Break | >6 kg/cm² | >6 kg/cm² | ASTM D412 |
| Elongation @ Break | >50% | >50% | ASTM D412 |
| Compression Strength @ 25% | >1.0 kg/cm² | >1 kg/cm² | — |
| Compression Set @ 50% | <14% | <15% | — |
| Tear Strength | >2 kg/cm | >2 kg/cm | ASTM D624 |
| Rebound Resilience | >100 mm | >100 mm | ASTM D2632 |
| Surface Resistivity | 10⁶ to 10⁸ ohm/m² | 10³ to 10⁵ ohm/m² | ASTM D257 |
| Minimum Slice Thickness | 2 mm | 2 mm | — |
Specifications are based on the supplied Capcell product specification dated 12.08.2024. Actual application performance should be validated for the intended packaging application.
ESD Static Dissipative vs Conductive Foam
| Property | ESD / Static Dissipative | C-Conductive |
|---|---|---|
| Surface Resistivity | 10⁶–10⁸ Ω/m² | 10³–10⁵ Ω/m² |
| Application | Electronic items packaging | Electronic items packaging |
| Colour | Jet Black | Jet Black |
| Density | 85 ± 5 kg/m³ | 85 ± 5 kg/m³ |
| Standard Thickness | 44 ± 2 mm | 44 ± 2 mm |
| Minimum Slice | 2 mm | 2 mm |
Not sure which grade you need? Send us your application and component details.
Ask an EngineerIn-house conversion

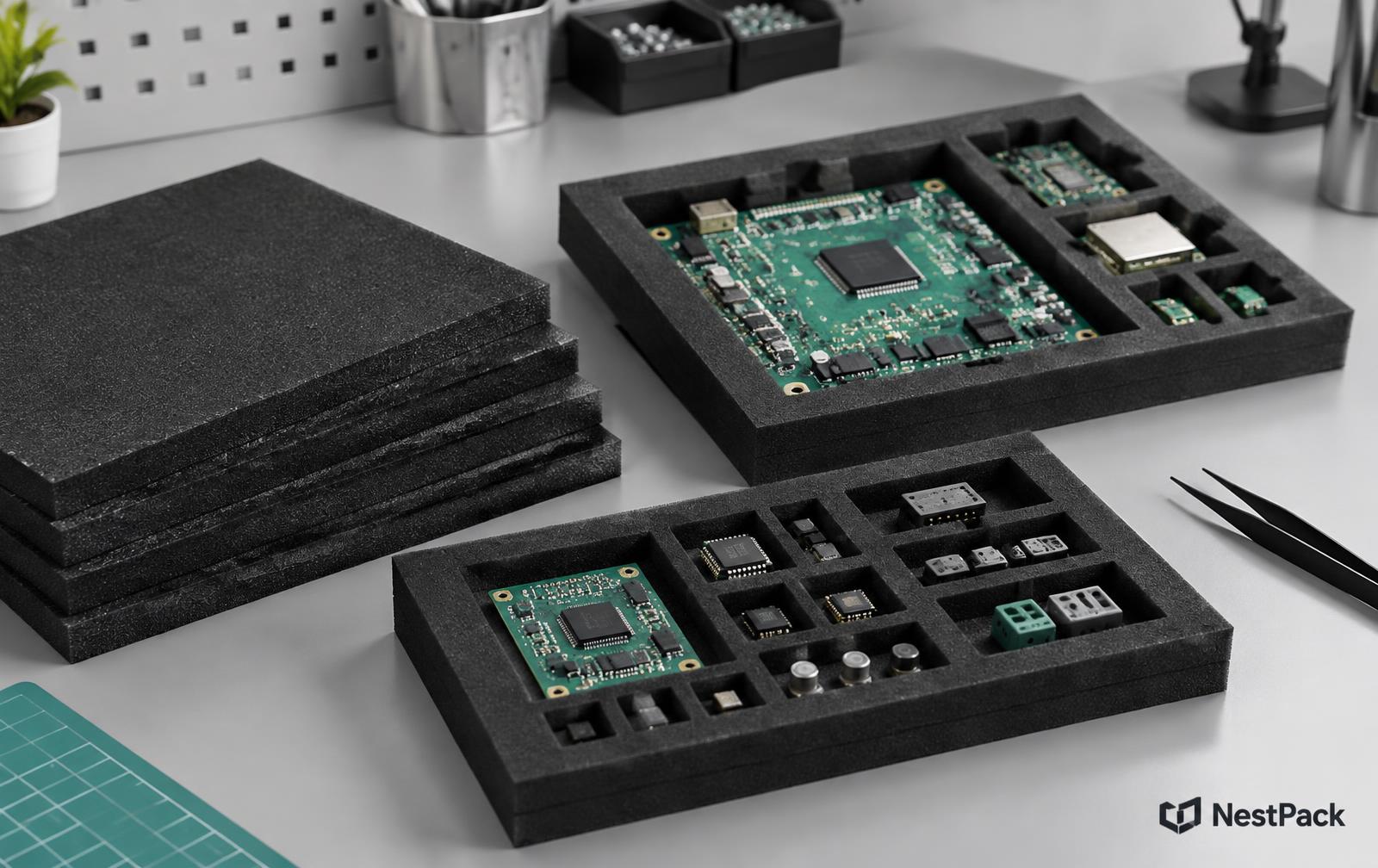

Custom ESD Foam Inserts & Packaging
NestPack converts conductive XLPE foam and conductive EVA foam formats into application-specific protective packaging for electronics and industrial equipment.
CNC-cut ESD foam inserts
Die-cut ESD foam
Custom trays
Component separators
PCB packaging inserts
Electronic equipment fitments
Layered foam packaging
Protective transit inserts
Custom foam pads
Foam blocks and sheets
Applications of ESD & Conductive Foam
PCB Packaging
Protective packaging for PCB assemblies and electronic boards.
Electronic Components
Protect sensitive electronic components during handling and transportation.
Semiconductor & IC Packaging
Foam packaging solutions for sensitive semiconductor-related components.
Sensors & Connectors
Custom cavities and protective separators for precision components.
Electronic Equipment
Custom foam fitments for instruments and control equipment.
Industrial Electronics
Protective packaging for electronic modules and assemblies.
Why Choose NestPack for ESD Foam Packaging?
NestPack Private Limited is an ESD foam manufacturer in Whitefield Bengaluru, supporting OEM and contract-manufacturing requirements from material selection through complete transit packaging.
- Bengaluru-based industrial packaging manufacturer
- Custom foam conversion
- ESD and conductive foam solutions
- CNC and die-cut foam capabilities
- Custom packaging based on drawing or sample
- Complete packaging solutions
- Foam + corrugated box
- Foam + plywood box
- Foam + protective hard case
- Pan-India supply
- Engineering support for packaging development
Complete ESD Packaging Solutions
NestPack can provide the foam component as well as the complete protective packaging configuration.
- 1Electronic Component
- 2ESD / Conductive Foam
- 3Custom Foam Insert
- 4Corrugated / Plywood / Hard Case
- 5Safe Transit Packaging
Industries We Serve
Electronics
Medical Electronics
Aerospace Electronics
Defence Electronics
Semiconductor
Industrial Automation
Testing & Measurement
Automotive Electronics
Telecommunications
EMS / Contract Manufacturing
ESD Packaging Solutions from Bengaluru
NestPack is an ESD foam manufacturer in Bengaluru and conductive foam supplier serving India from Sy No 100/4, Kaithota Road, Nagondanahalli, Whitefield, Bengaluru – 560066, Karnataka, India. We support electronics, EMS, PCB, semiconductor-related, medical electronics, aerospace electronics, defence electronics and industrial equipment buyers with sheets and converted fitments.
For ESD packaging solutions in Bengaluru or pan-India supply, share the component, expected handling, quantity and outer-pack requirement so the engineering team can review the full configuration.
Technical Data
Technical specification available on request. Supplier documentation is shared directly where appropriate.
Related foam materials & packaging services
Engineering enquiry
Need ESD Foam for Your Product?
Send your component dimensions, drawing, photograph or sample. Our team can review your requirement and recommend the suitable ESD or conductive foam configuration.
ESD & Conductive Foam FAQs
What is ESD foam?
ESD foam is a static-dissipative packaging material designed to allow electrostatic charge to dissipate in a controlled way. It is used around electronics and other static-sensitive components after the complete packaging system has been assessed for the application.
What is conductive foam?
Conductive foam is a lower-resistance foam grade used in packaging configurations where electrical conductivity is required. NestPack's listed C-Conductive grade has a surface resistivity of 10³ to 10⁵ ohm/m² according to the supplied material specification.
What is the difference between ESD and conductive foam?
The primary distinction is surface resistivity. The ESD / static-dissipative grade is specified at 10⁶ to 10⁸ ohm/m², while the C-Conductive grade is specified at 10³ to 10⁵ ohm/m². The suitable grade depends on the component and packaging system.
What is the surface resistivity of the ESD foam?
The ESD / static-dissipative grade is specified at 10⁶ to 10⁸ ohm/m² in the supplied Capcell product specification dated 12.08.2024.
What is the surface resistivity of conductive foam?
The C-Conductive grade is specified at 10³ to 10⁵ ohm/m² in the supplied Capcell product specification dated 12.08.2024.
What thickness of ESD foam is available?
The standard finished block thickness is 44 ± 2 mm, with a listed minimum slice thickness of 2 mm. Ask our engineering team to confirm the practical sheet and insert build for your requirement.
Can ESD foam be CNC cut?
Yes. NestPack can CNC-cut ESD foam into cavities, trays and fitments based on a drawing, component dimensions or an approved sample.
Can NestPack supply custom ESD foam inserts?
Yes. We convert ESD and conductive foam into CNC-cut or die-cut inserts, trays, separators, pads, layered fitments and complete protective packaging configurations.
Can ESD foam be used for PCB packaging?
ESD foam can be considered for PCB packaging, including trays and separators. The foam grade and complete pack design should be selected and validated for the specific board and handling conditions.
Do you supply ESD foam sheets in India?
Yes. NestPack supplies ESD and conductive foam sheets and converted fitments from Whitefield, Bengaluru to electronics and industrial buyers across India.
Can NestPack supply conductive foam packaging for electronic components?
Yes. We can supply conductive foam sheets, pads, trays and custom inserts for electronic components after reviewing the component, pack configuration and handling requirement.
Can you manufacture custom foam packaging from our drawing?
Yes. Send a PDF, DXF, DWG, STEP, image, component dimensions or physical sample. NestPack can review it and propose a suitable foam grade and converted packaging format.
